The ring debarker is used for initial processing of the log, removing the bark.
The machine debarks logs of various diameters, from a minimum of 15 up to a maximum of 96 cm. Debarking parameters can be adjusted according to the wood species and hardness.

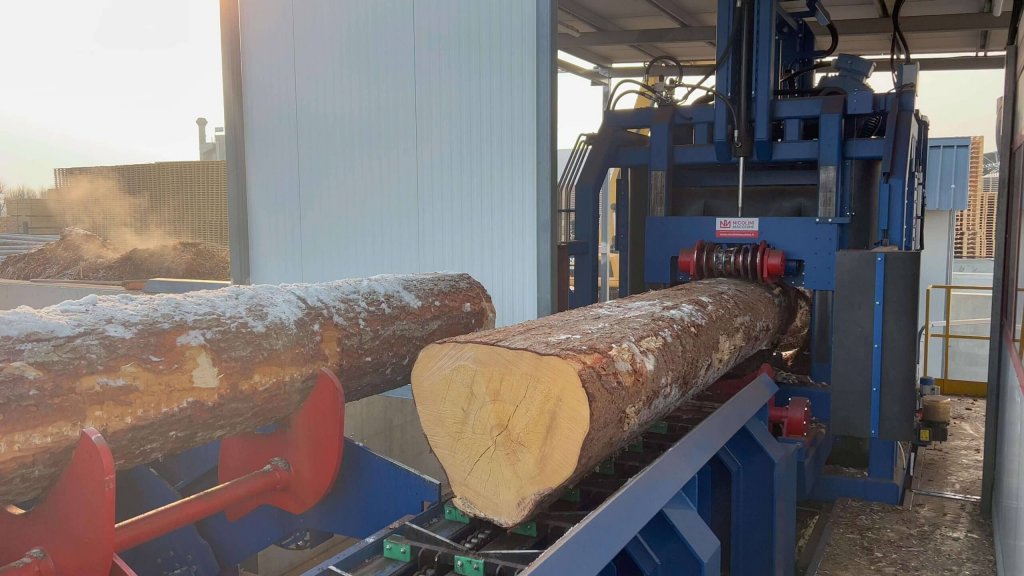

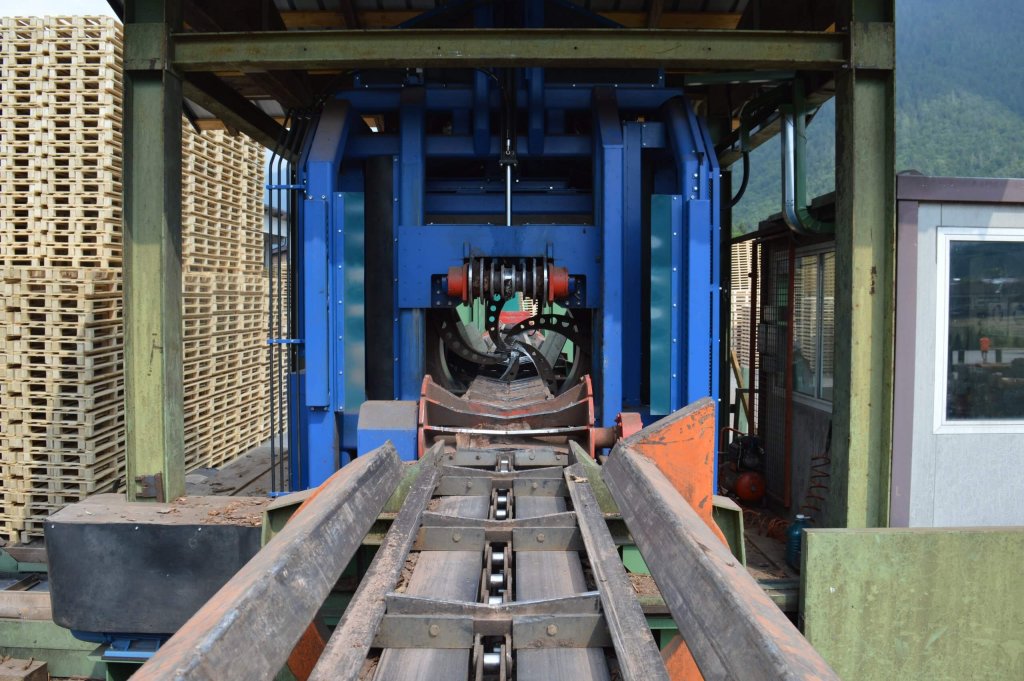

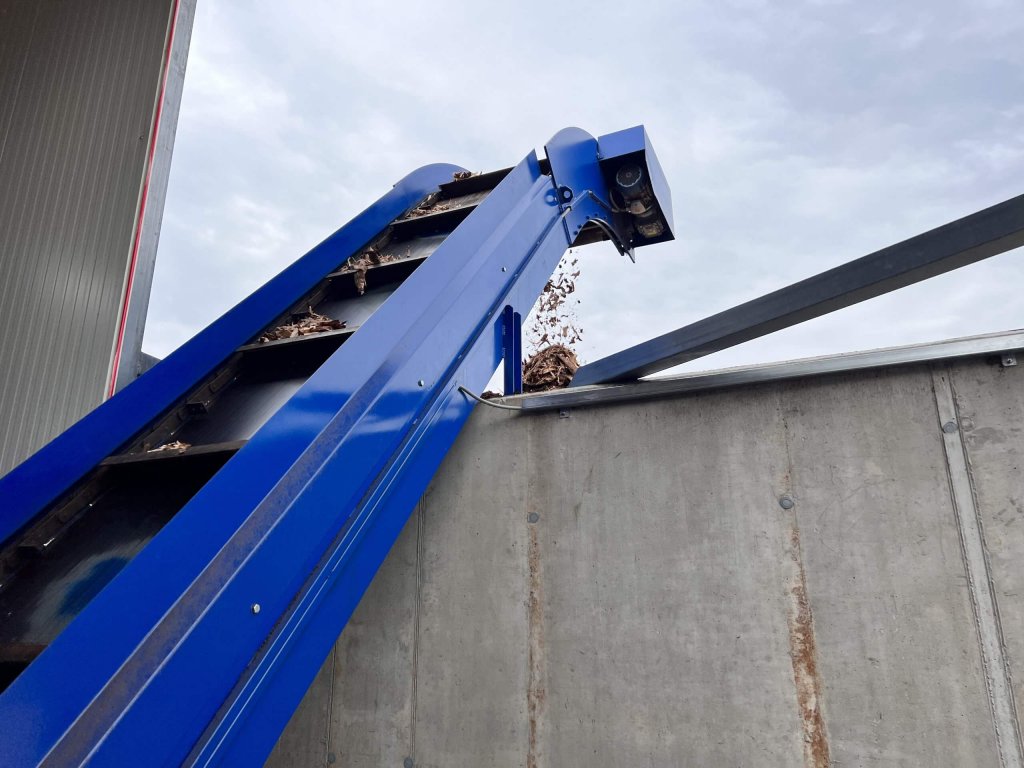

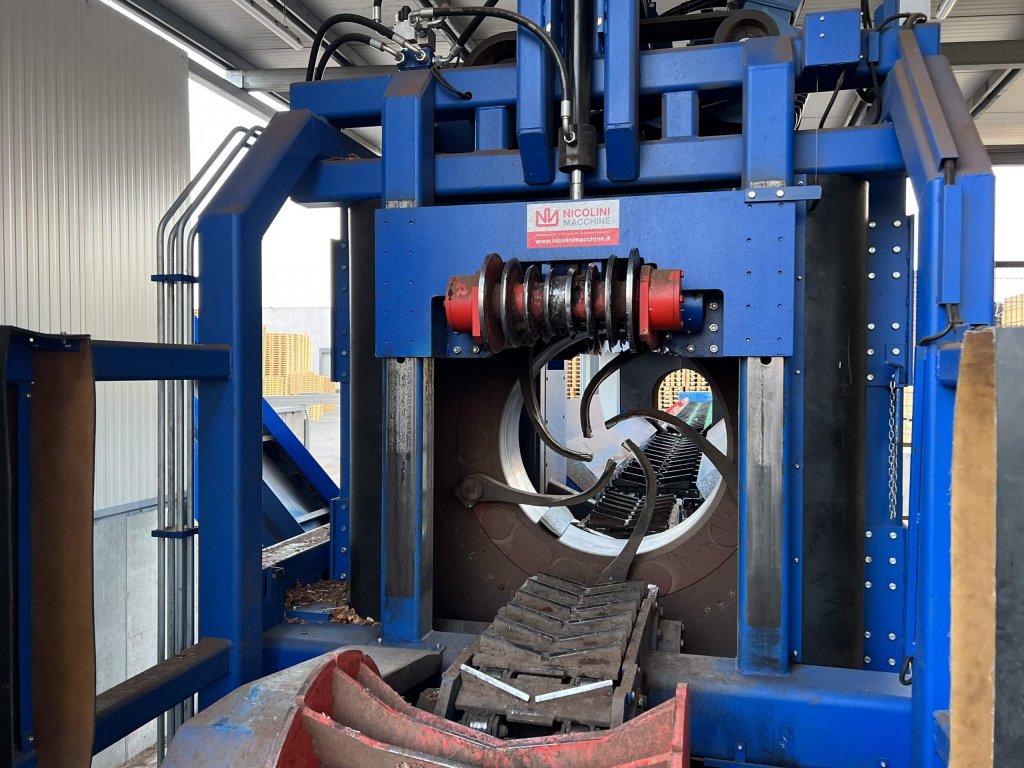

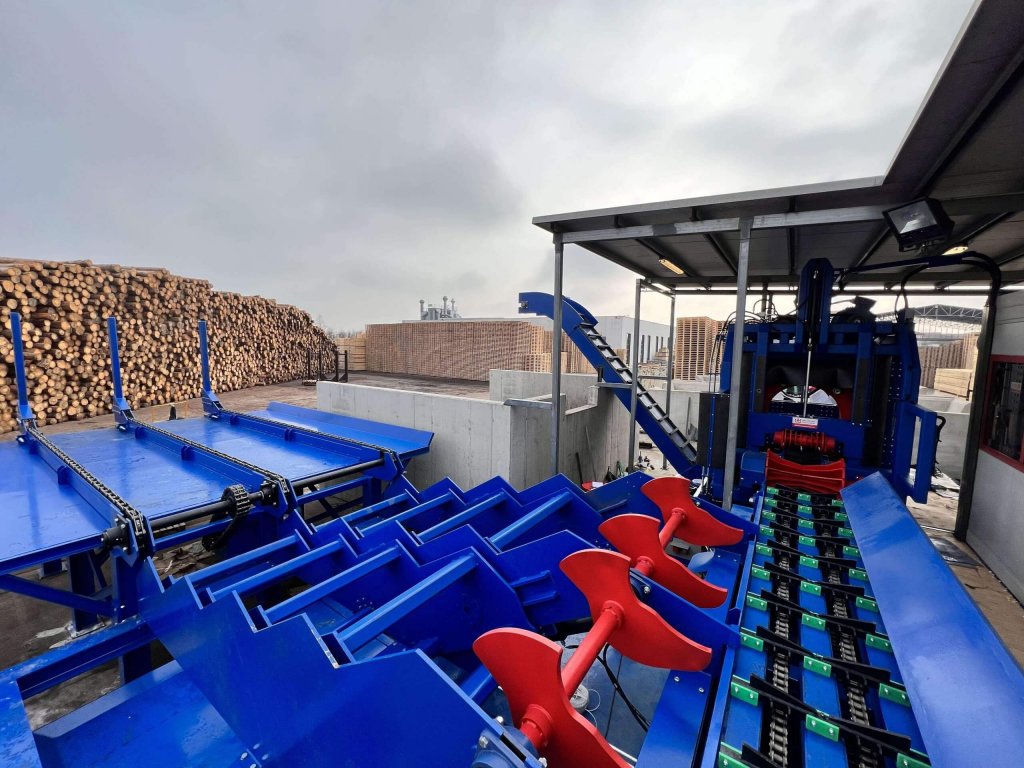

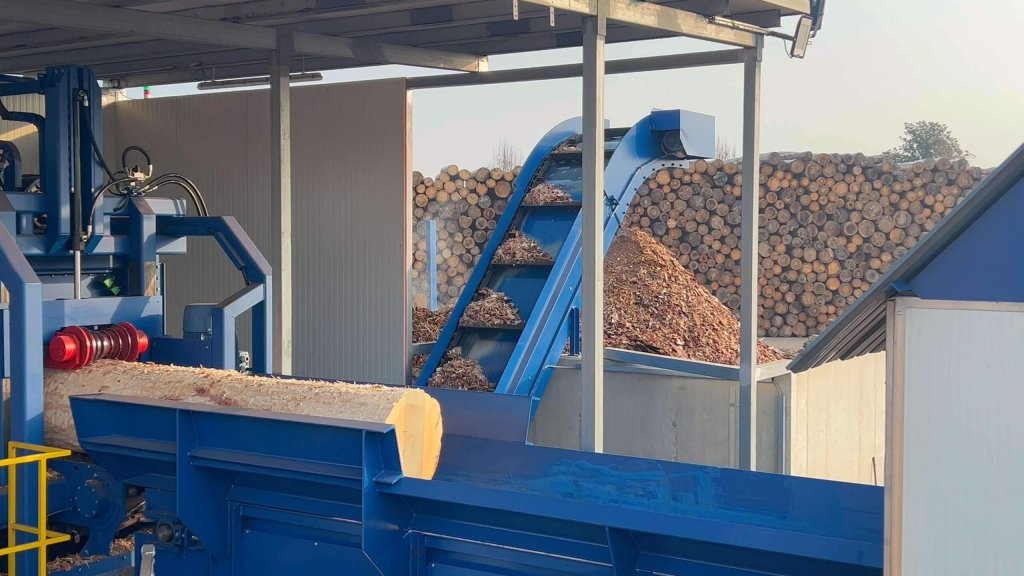

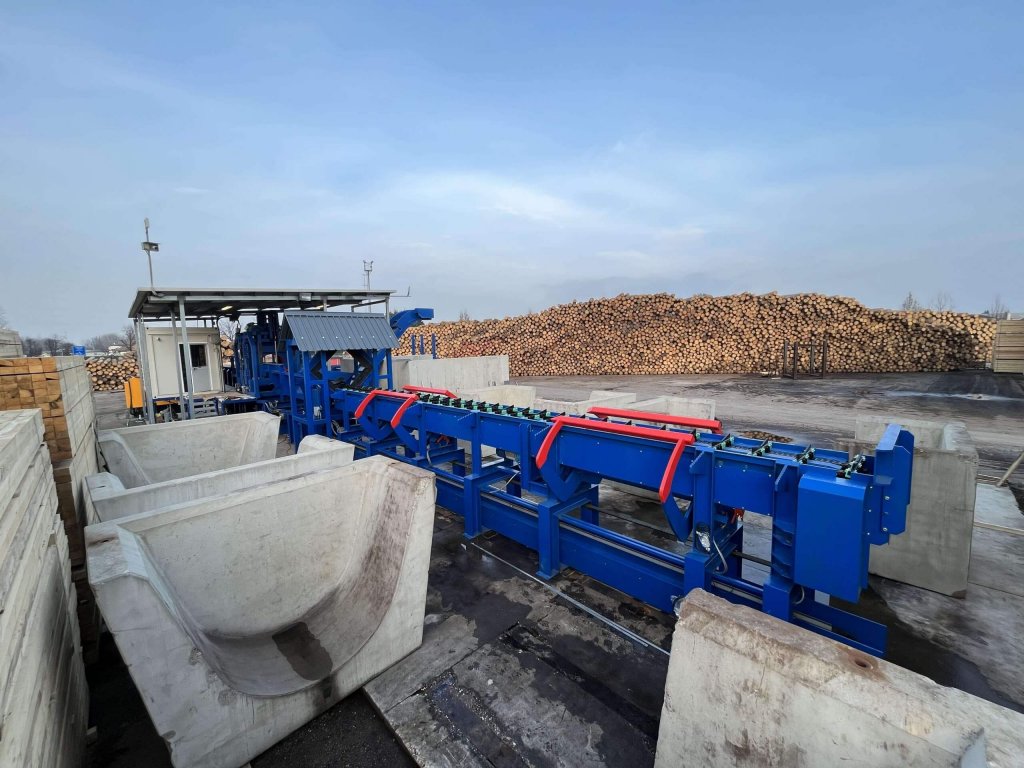

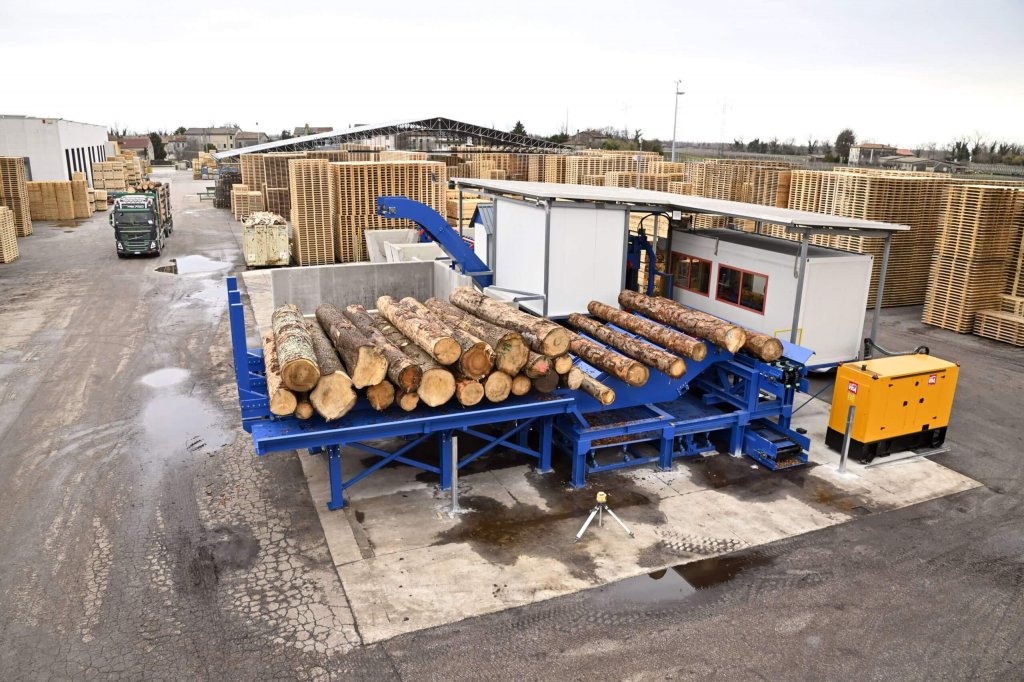

The log to be debarked is fed into the machine by a dual chain conveyor chain with offset attachment plates and overhead pressure rollers that immobilise the log during feed. At the centre of the machine, a five-blade rotor assembly strips the tree trunk bark. The rotor is driven by a 37 kW electric motor controlled by an inverter; blade pressure is regulated from the operator workstation. Stripped bark is conveyed into a tank below the machine and extracted by a scraper chain.
Directly from the console located in the debarking machine’s control cabin, the operator can
Power: 37 kw + 18.5 kw
Speed: 20/30 mt/min 18-35 mt/min
Diameter: minimum 15 cm, maximum 950 mm
Minimum trunk length: 2 metres
Dimensions: maximum height 3 m, weight 14 tonnes
